1. The device DC high frequency portable dental x-ray unit, small, light and nearly no radiation.
2. There are manual buttons installed on the surface of shell ,operate easily ,All of the components are installed in the central PC board ,insulation vacuum and sealed stereotype protection make its brilliant features.
3. The unit mainly suitable for oral pre-treatment diagnosis of internal organization structure and root depth and so on , is indispensable in daily life clinic,especially for dental implant surgery.
4. The battery is durability ,it can take about five hundred images after full charged ,and it can be charged and discharged for one thousand times in its life
5. It can be connected with intra-oral digital x-ray imaging system
|

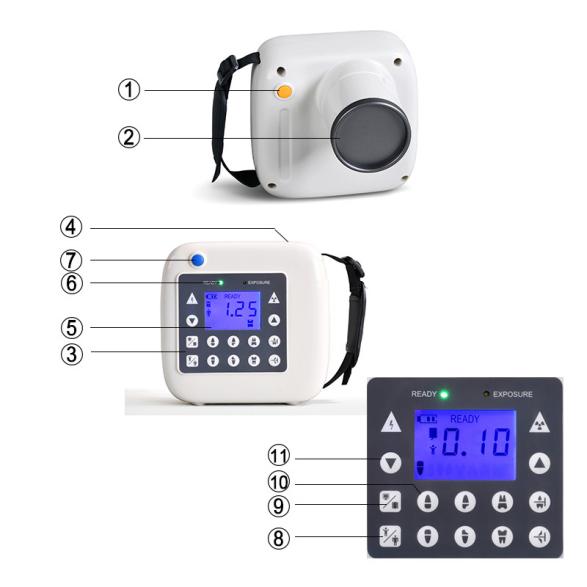

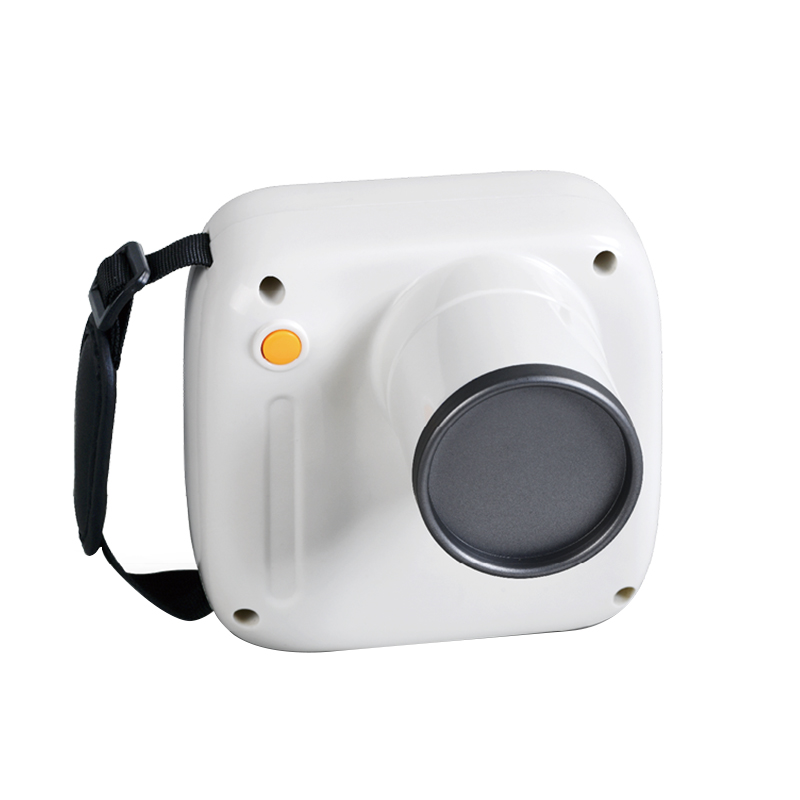

4.1 The main body |
4.2 Control panel |
|
1- Exposure switch |
8- Adult/children selection |
|
2- Beam cone |
9- Film/sensor selection |
|
3- Control panel |
10-Tooth position selection |
|
4- Charging hole |
11- Exposure time adjusted |
|
5- LCD screen |
|
|
6- Indicate lights |
|
|
7- Power switch |
|
|
Tube voltage |
60 KV |
|
Tube current |
2mA |
|
Exposure time |
0.1-2.0S |
|
Frequency |
30kHz |
|
Rate power |
60VA |
|
Distance from skin to cone |
105mm |
|
Tube focus |
0.8mmx08mm |
|
Battery |
DC14.8V 1600mAh |
|
Charger input voltage |
AC100V-240V± 10% |
|
Output voltage |
DC16.8V |
|
Ambient temperature |
5°C~40°C |
|
Relative temperature |
<75% RH |
|
Net weight |
1.7KG |
|
Size (mm) |
110x140x165 |
|
|
|
|
|
|

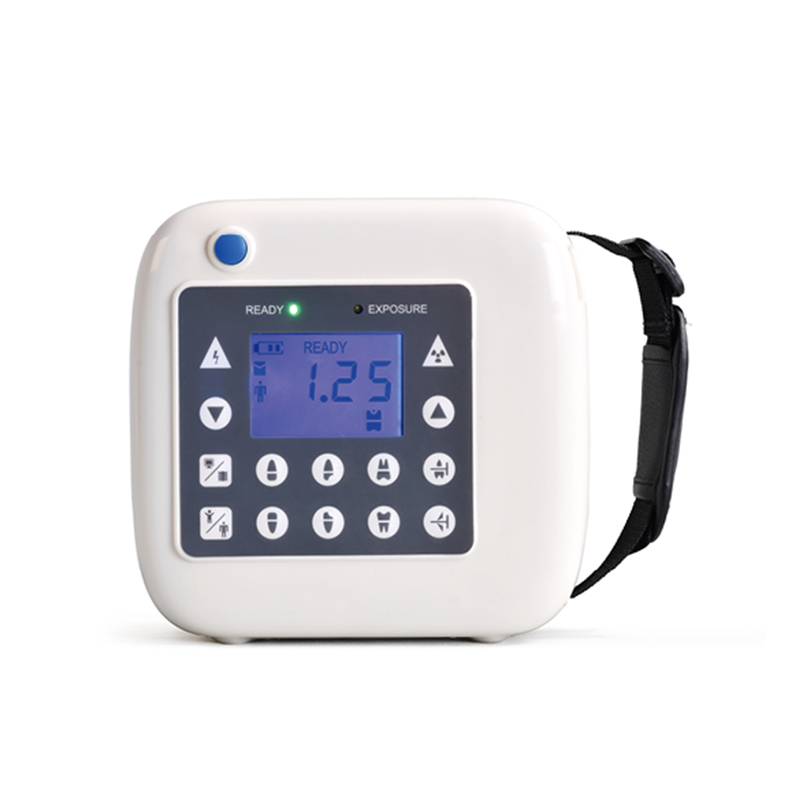

GH-311 Monochromatic screen
|

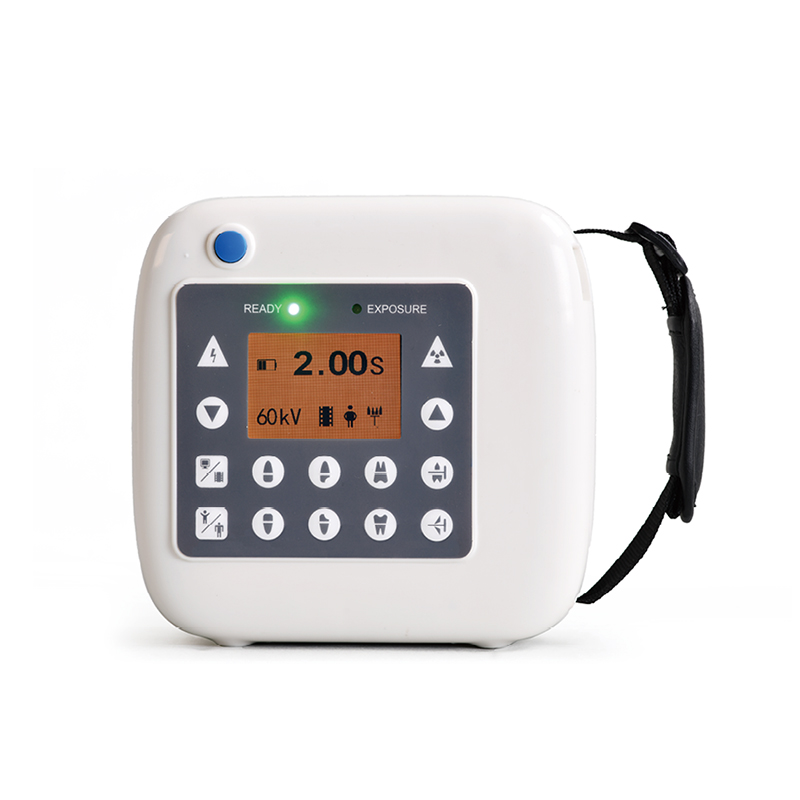

GH-321 Color screen
|

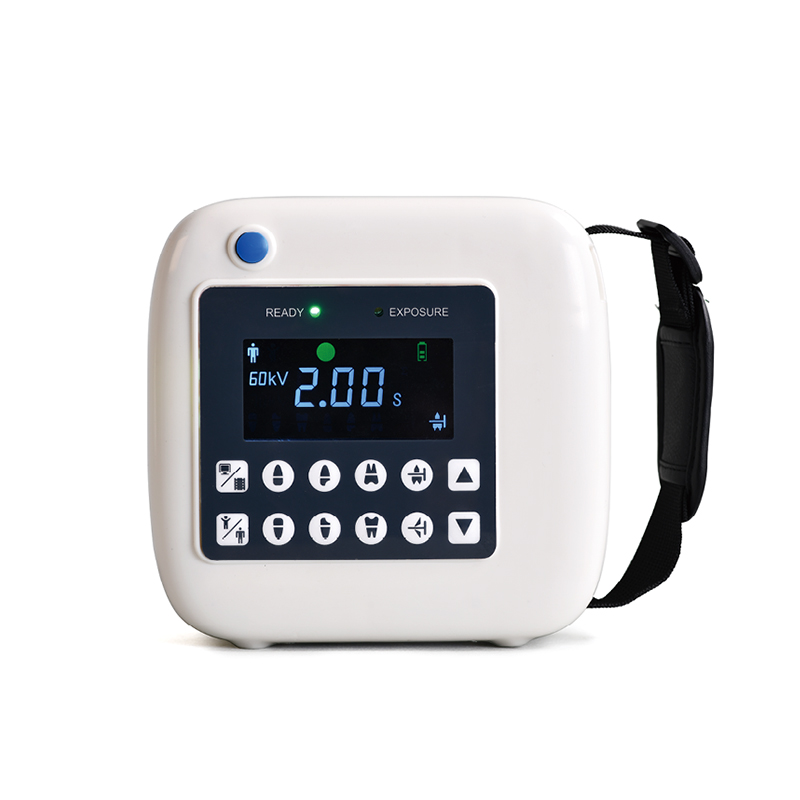

GH-331 2.4 Inch Dot Matrix screen
|
GH-341 3.5inch Touch screen
|
