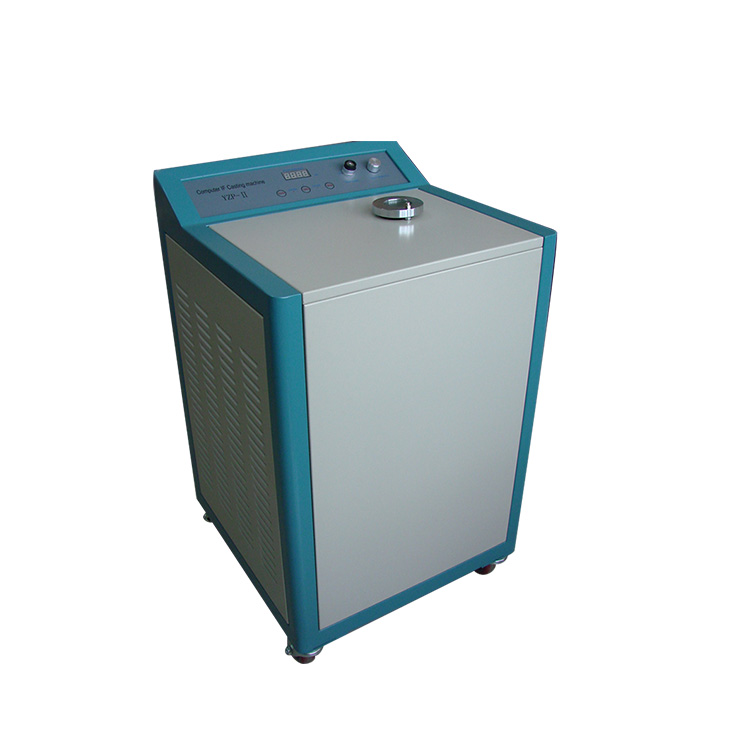

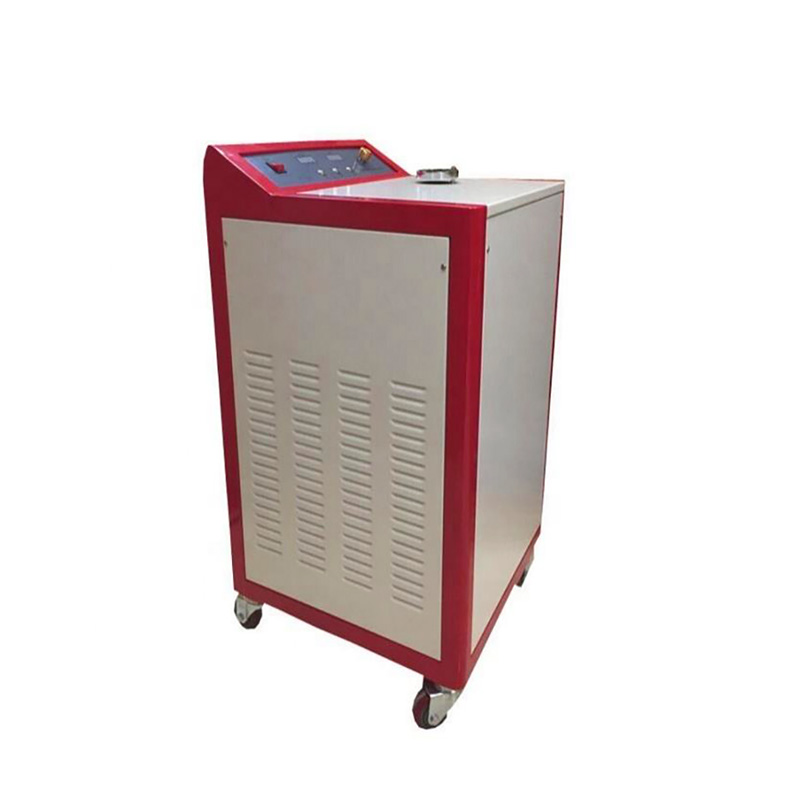

The Middle Frequency Induction Casting Machine is upgraded from the High Frequency Induction Casting Machine, it has the following advantages.
1. Highly efficient, low power consumption and low power rating (2.5kW) thanks to the advance all-transistor circuitry.
2. No preheating is needed, melting and casting can start immediately. The interval time between two castings is only two minutes,excellent for continuous casting.
3. It can work under 220V/110V voltage.
4. Safer and more reliable thanks to the low working voltage and low high-frequency radiation.
5. Compact size and lower weight.
|
Power supply |
220V/110V 50/60Hz |
|
Power Consumption |
2,500W |
|
Motor |
370W |
|
Centrifugal Rev |
550rpm |
|
Centrifugal Radius |
21cm |
|

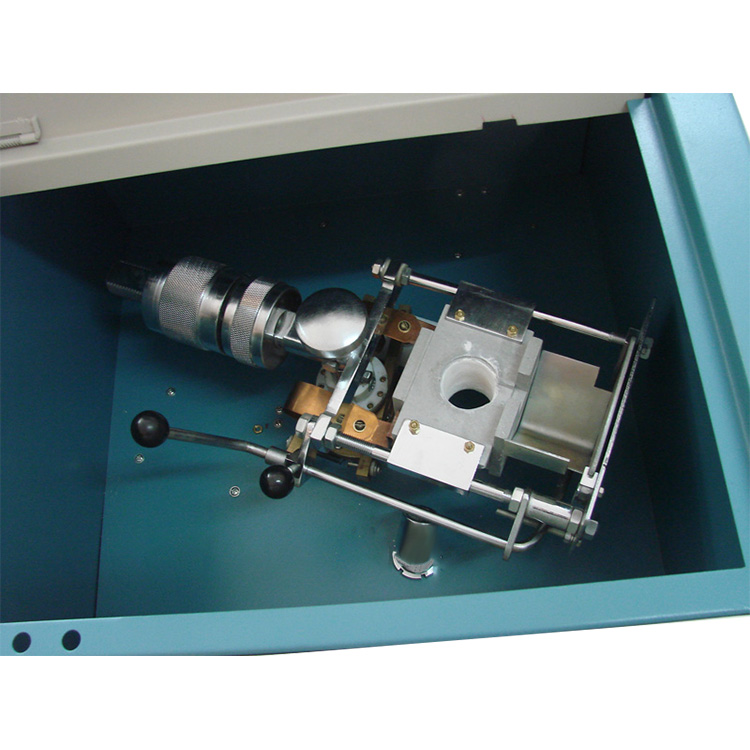

Casting Method |
Centrifugal Casting |
|
Max. Melting Amout |
50g |
|
Heating Method |
Medium Frequency Induction Heating |
|

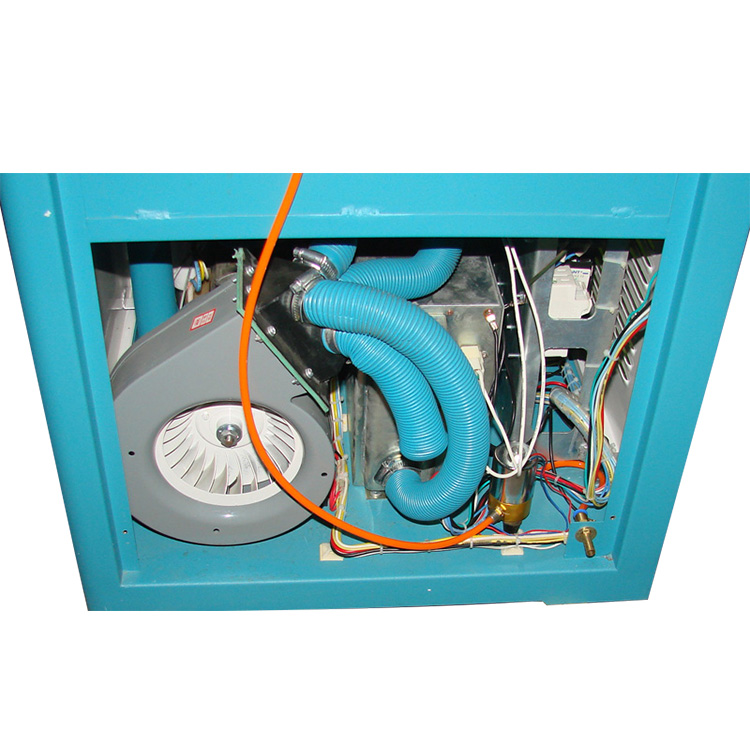

Cooling Fashion |
Air Cooling |
|
Melting Time |
30g≤65sec (standard) |
|
Dimensions |
93cm x 52cm x 52cm (H W D) |
|
Shipping Dimension |
101*67*57cm |
|
Weight |
93KGS |
